6W SMD CLSF GU10 LED spot lamp

6W SMD CLSF GU10 LED spot lamp

1. High output mainteneance 3030 SMD LED,
2. Good appearance and performance heat sink design,
3. Stable Coolight isolated constant current LED driver,
4. Optimized high light output optic lens,
5. Slim design, GU10 only 55mm high.

Inquiry Now
6W GU10 CLSF SMD LED Spot Lamp

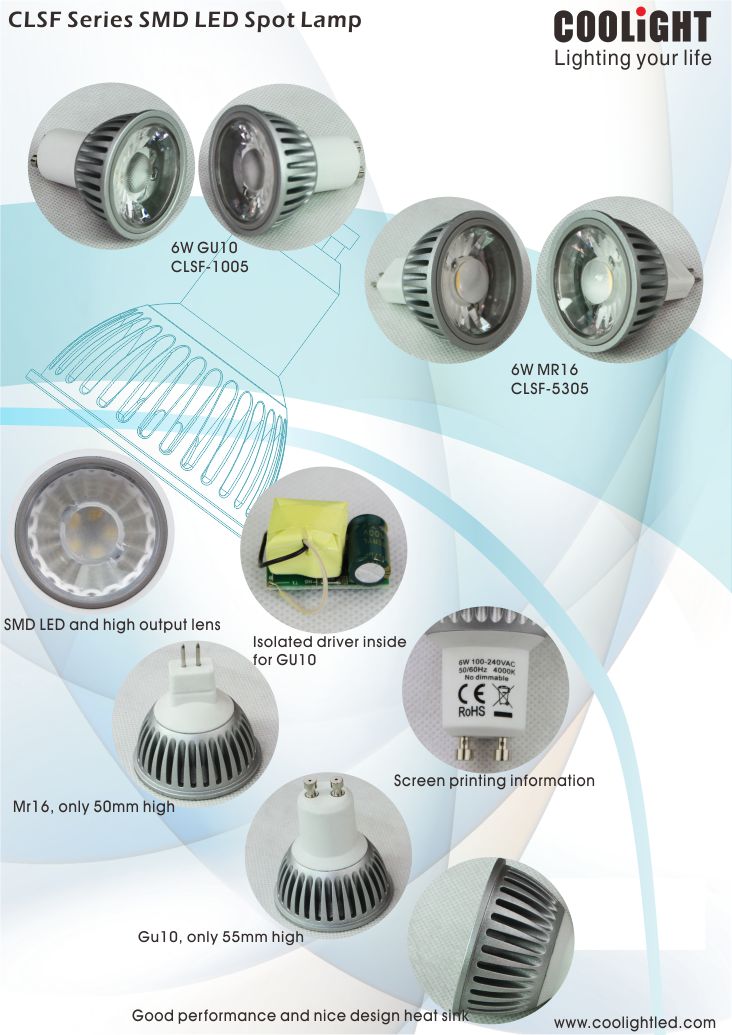

CLSF series SMD LED Spot lamp





Product Name: 6W GU10 CLSF SMD LED Spot Lamp
Power consumption:6W
Heat sink material: Die-casting aluminum



LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC(GU10)
LED driver PF: PF>0.5(GU10)



Standard CRI: CRI>80 (3000K,4000K); CRI>70 (6000K)
Beam angle: 38 degree
Color temperature: 3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table



Product Name

Part No.

Input
Voltage

Power (W)

Power Factor

Luminous flux  (lm)

CCT        (K)

CRI

Beame Angle

MR16 SMD Spot Lamp

CLSF-5305

12V AC/DC

6

>0.9

490

6000

>70

38°

410

4000

>80

400

3000

GU10 SMD Spot Lamp

CLSF-1005

100240VAC

6

>0.5

490

6000

>70

410

4000

>80

400

3000

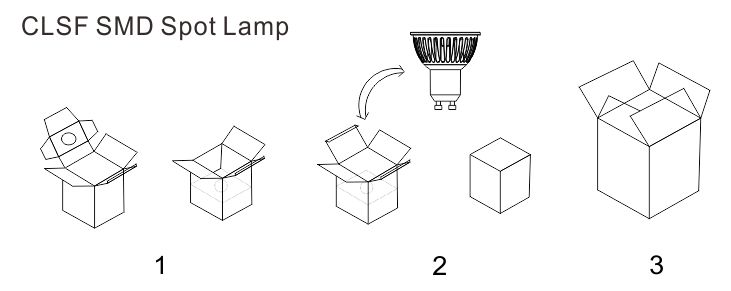

CLSF series SMD LED Spot lamp package


Part No.

Single box

(mm)

G.W. per pcs (±5%)

Outer carton

(mm)

QTY per Carton

(pcs)

G.W per carton

(±5%)

CLSF- 5305

53*53*62

65g

265*265*310

100

7.1kg

CLSF- 1005

53*53*62

75g

265*265*310

100

8.1kg

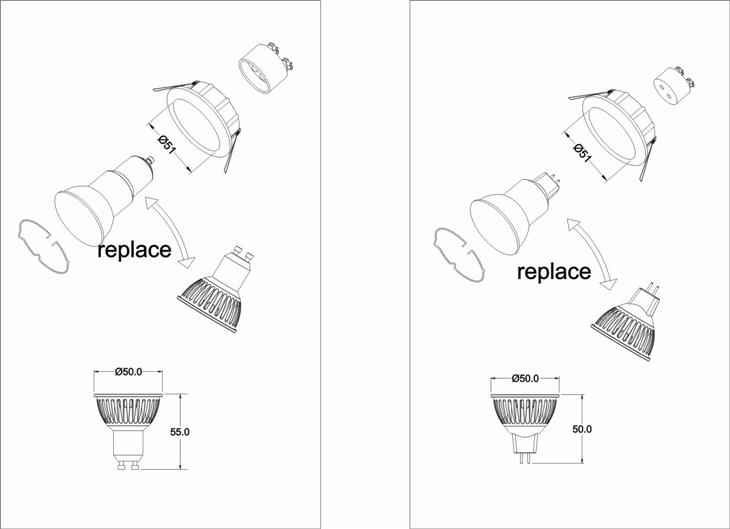

CLSF series SMD LED Spot lamp retrofit installation



CAUTION:
1) Indoor use only.
2) Working temperature: -20-40 degree.
3) Please turn off power prior to installation, replacement and cleaning.
4) Do not try to disassemble the lamp.
