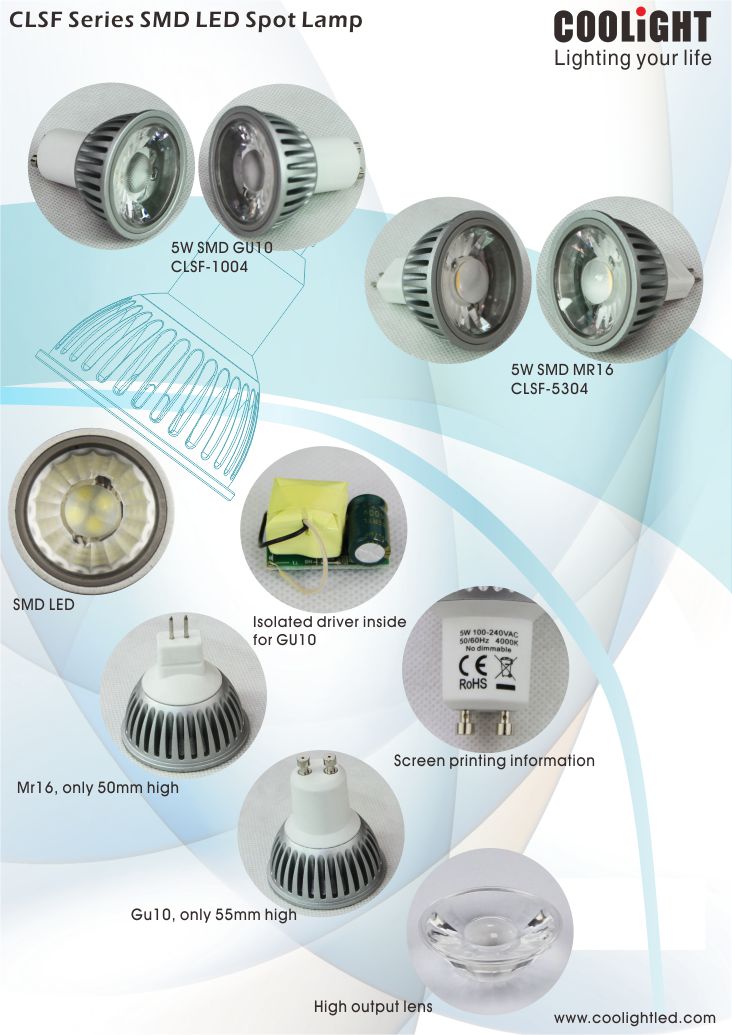

5W SMD CLSF GU10 LED spot lamp

5W SMD CLSF GU10 LED spot lamp

1. High output mainteneance 1W 3030 SMD LED,
2.
Stable Coolight isolated constant current LED driver,
3.
Good appearance and performance heat sink design,

4. Optimized high light output optic lens,
5. Slim design, GU10 only 55mm high.

Inquiry Now



5W GU10 CLSF SMD LED Spot Lamp



5W GU10 CLSF SMD LED spot lamp





Product Name: GU10 5W CLSF SMD LED Spot Lamp
Power consumption: 5W
Heat sink material: Die-casting aluminum



LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC(GU10)
LED driver PF: PF>0.5(GU10)



Standard CRI: CRI>80 (3000K,4000K); CRI>70 (6000K)
Beam angle: 38 degree
Color temperature:  3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table

Product Name

Part No.

Input
Voltage

Power (W)

Power Factor

Luminous flux  (lm)

CCT        (K)

CRI

Beame Angle

GU10 5W SMD LED Spot Lamp

CLSF-1004

100240VAC

5

0.5

340

6000

>70

38°

320

4000

>80

300

3000







5W SMD CLSF series LED Spot lamp-2

Part No.

Single box

(mm)

G.W. per pcs (±5%)

Outer carton

(mm)

QTY per Carton

(pcs)

G.W per carton

(±5%)

CLSF- 1004

53*53*62

65g

584*300*315

200

15.1kg

Gu10 5W SMD LED spot lamp


CAUTION:
1) Indoor use only.
2) Working temperature: -20-40 degree.
3) Please turn off power prior to installation, replacement and cleaning.
4) Do not try to disassemble the lamp.
