6W COB CLSF GU10 LED Spot lamp

6W COB CLSF GU10 LED Spot lamp

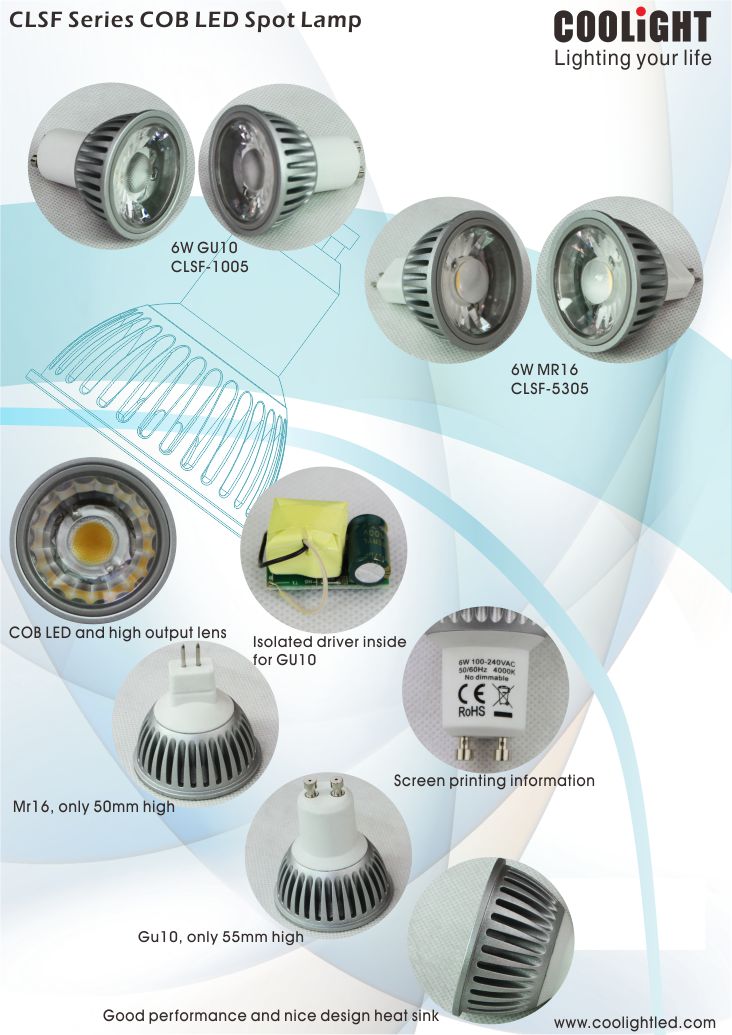

1. Good appearance and performance heat sink design,
2. High output mainteneance and long life time COB(chips on board) LED,
3. Stable Coolight isolated constant current LED driver,
4. Optimized high light output optic lens,
5. Slim design, GU10 only 55mm high



Inquiry Now

6W GU10 CLSF COB LED Spot Lamp

CLSF series COB LED Spot lamp





Product Name: 6W GU10 CLSF COB LED Spot lamp



Power consumption: 6W

Heat sink material: Die-casting aluminum



LED driver type: Isolated constant current LED driver

LED driver input voltage: 100-240V AC(GU10)

LED driver PF: PF>0.5(GU10)



Standard CRI: CRI>80 (2700K,3000K,4000K); CRI>70 (6000K)

Beam angle: 38 degree, 60 degree optional

Color temperature: 2700k, 3000k, 4000k, 6000k optional

Luminous flux: detail lumen information as following table



Product Name

Part No.

Input
Voltage

Power (W)

Power Factor

Luminous flux  (lm)

CCT        (K)

CRI

Beame Angle

MR16 COB Spot Lamp

CLSF-5305

12V AC/DC

6

>0.9

490

6000

>70

38°,60°

410

4000

>80

400

3000

390

2700

GU10 COB Spot Lamp

CLSF-1005

100240VAC

6

>0.5

490

6000

>70

410

4000

>80

400

3000

390

2700

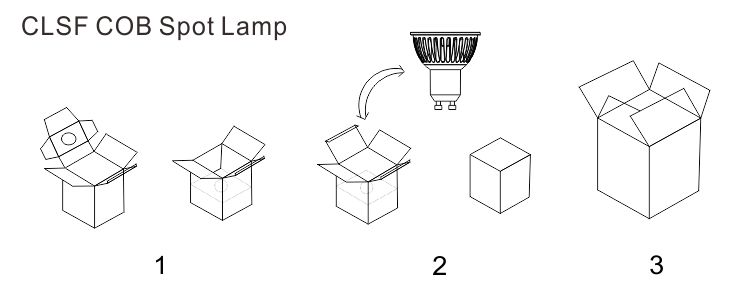

CLSF series COB LED Spot lamp package


Part No.

Single box

(mm)

G.W. per pcs (±5%)

Outer carton

(mm)

QTY per Carton

(pcs)

G.W per carton

(±5%)

CLSF- 5305

53*53*62

65g

265*265*310

100

7.1kg

CLSF- 1005

53*53*62

75g

265*265*310

100

8.1kg

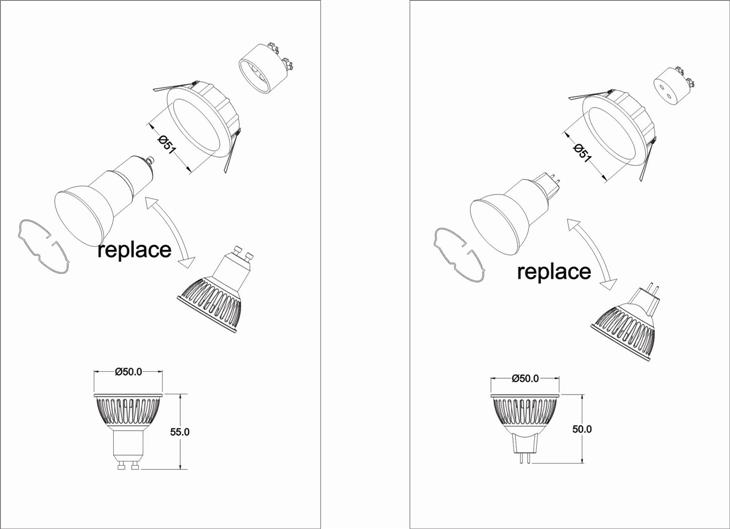

CLSF series COB LED Spot lamp retrofit installation

CAUTION:
1) Indoor use only.
2) Working temperature: -20-40 degree.
3) Please turn off power prior to installation, replacement and cleaning.
4) Do not try to disassemble the lamp.
