622x622mm 46W CLPG series LED panel

622x622mm 46W CLPG series LED panel

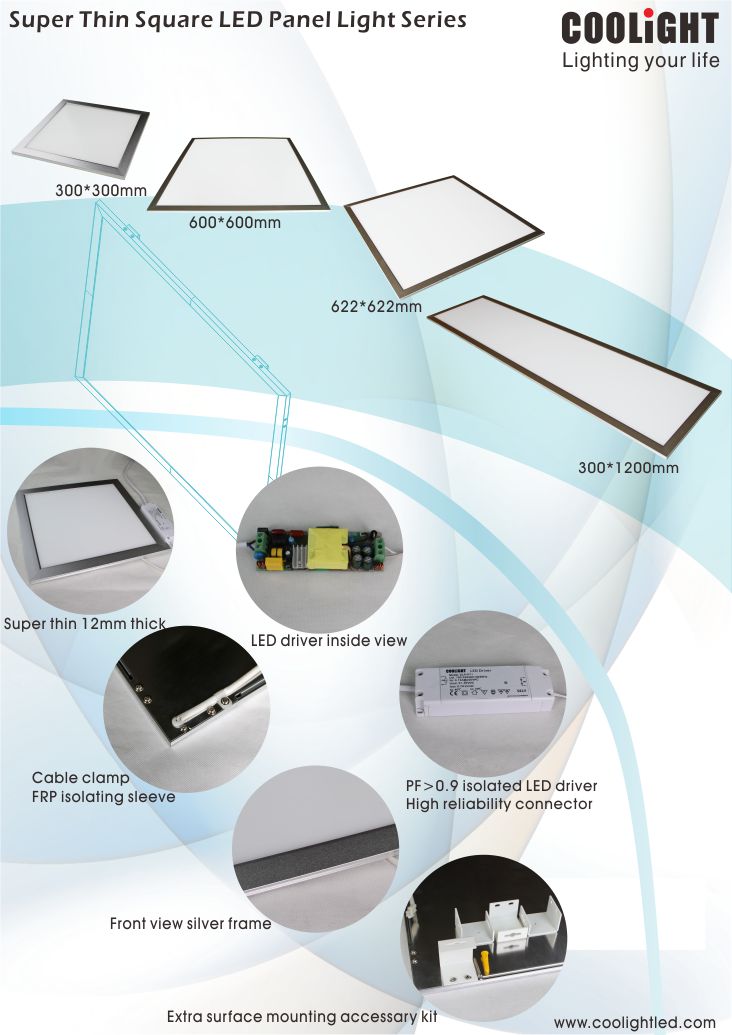

1. Coolight PF>0.9 high stablity isolated constant current LED driver,

2. Edge light design, super slim, 12mm thick,
3. Special design screen printing LGP(light guide plate) for high output,
4. Optimized LED arrangement for long life time and high output maintenance,
5. Cable clamp and FRP isolating sleeve to avoid damage

Inquiry Now

622x622mm 46W CLPG series LED panel




596x596mm 36W CLPG series LED panel





Product Name: 622x622mm 46W CLPG series LED panel
Power consumption: 46w for 622X622MM

Heat sink material: aluminium extruded sections



LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC
LED driver PF: PF>0.9





Standard CRI: CRI>80 for 3000K and 4000K, CRI>80 for 6000K
Beam angle: 110 degree
Color temperature: 3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table



Product Name

Part No.

Input
Voltage

Power (W)

Power Factor

Luminous flux  (lm)

CCT        (K)

CRI

Beame Angle

300*300   Panel Light

CLPG-0118

100240VAC

25

0.9

1650

6000

>70

110°

1600

4000

>80

1500

3000

600*600   Panel Light

CLPG-0139

100240VAC

46

0.9

3100

6000

>70

3000

4000

>80

2800

3000

622*622   Panel Light

CLPG-0139

100240VAC

46

0.9

3100

6000

>70

3000

4000

>80

2800

3000

1200*300  Panel Light

CLPG-0139

100240VAC

46

0.9

3100

6000

>70

3000

4000

>80

2800

3000

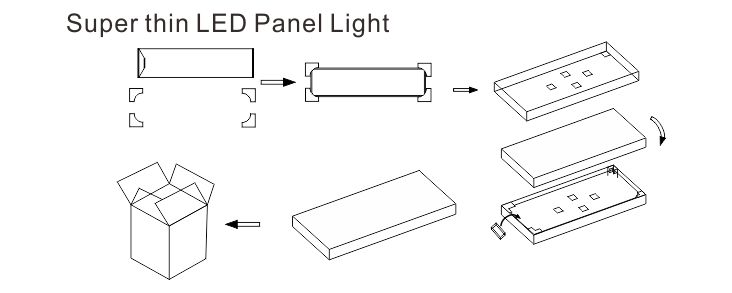

596x596mm 36W CLPG series LED panel-2

Part No.

Single box

(mm)

G.W. per pcs (±5%)

Outer carton

(mm)

QTY per Carton

(pcs)

G.W per carton

(±5%)

CLPG- 0118

420*350*55

1500g

570*440*380

10

18.2kg

CLPG- 0139

690*665*55

5000g

720*700*310

5

26.1kg



CLPG- 0139



740*690*55



5100g



770*720*310



5



27.3kg

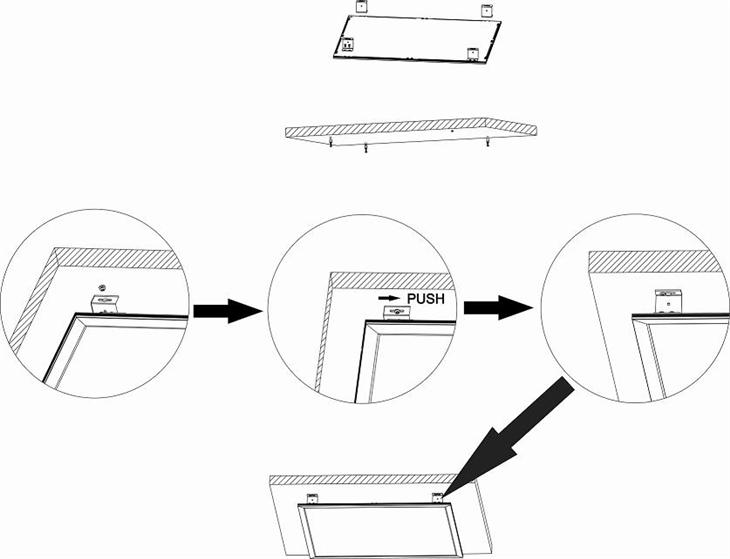

1. Surface mounting installation





(Need to buy the extra surface mounting accessory kit CL-xxxx )

596x596mm 36W CLPG series LED panel-3

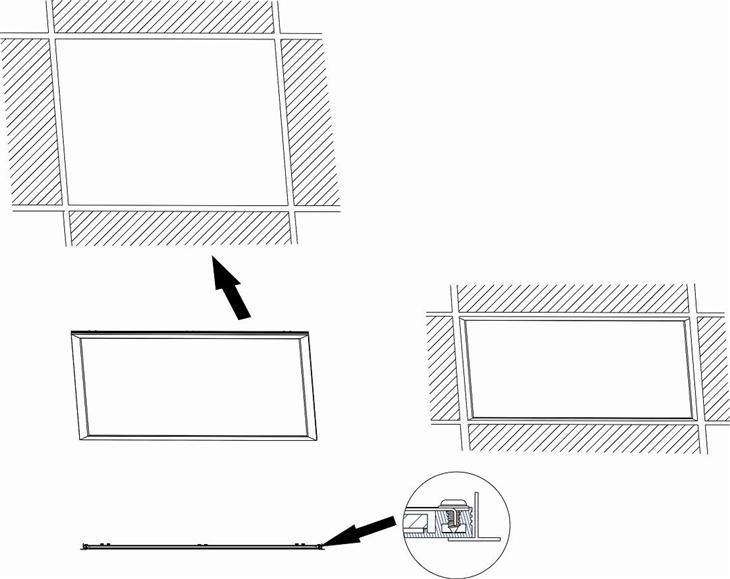

2. Recessed installation



596x596mm 36W CLPG series LED panel-4

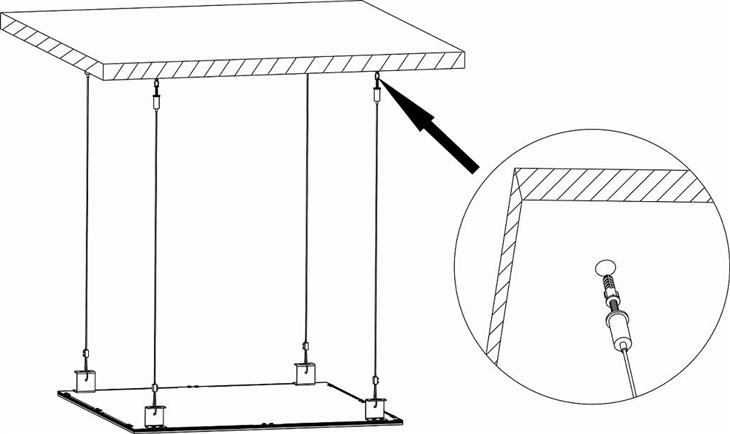

3. Suspended installation



(Need to buy the extra suspended accessory kit CL-xxxx )





596x596mm 36W CLPG series LED panel-5
