240mm CLPC round LED panel light
1. Edge light design, super slim,
2. Special design screen printing LGP(light guide plate) for high output,
3. Coolight self-design PF>0.9 high stablity isolated constant current LED driver,
4. Cable clamp and FRP isolating sleeve to avoid damage,
5. Good uniformity and soft light, heathy for your eyes.

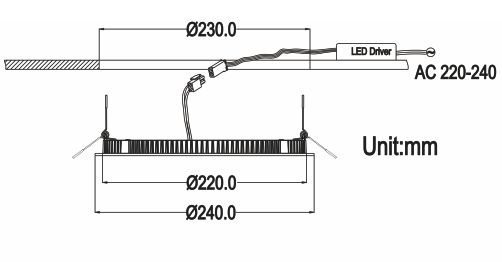

240mm CLPC Round LED Panel Light
Product Name: 240mm CLPC series round LED panel light
Power consumption:16W for 240MM
Heat sink material: Die-casting aluminum
LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC
LED driver PF: PF>0.9
Standard CRI: CRI>80
Beam angle: 110 degree
Color temperature: 3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table
|
Product Name |
Part No. |
Input |
Power (W) |
Power Factor |
Luminous flux (lm) |
CCT (K) |
CRI |
Beam Angle |
Cut Size (mm) |
|
|
145mm Panel Light |
CLPA-0106 |
100－240VAC |
7 |
>0.9 |
350 330 320 |
6000k |
>80 |
110° |
￠131 |
|
|
180mm Panel Light |
CLPB-0108 |
100－240VAC |
10 |
>0.9 |
570 550 490 |
￠166 |
||||
|
240mm Panel Light |
CLPC-0113 |
100－240VAC |
16 |
>0.9 |
1050 1020 900 |
￠230 |
||||
|
300 mm Panel Light |
CLPD-0115 |
100－240VAC |
19 |
>0.9 |
1150 1120 1000 |
￠286 |
|
Part No. |
Single box (mm) |
G.W. per pcs (±5%) |
Outer carton (mm) |
QTY per Carton (pcs) |
G.W per carton (±5%) |
|
CLPA- 0106 |
185*180*50 |
480g |
545*375*260 |
30 |
15.3kg |
|
CLPB- 0108 |
210*205*50 |
677g |
560*385*360 |
30 |
19.6kg |
|
CLPC- 0113 |
285*280*50 |
880g |
560*285*510 |
20 |
19.3kg |
|
CLPD- 0115 |
360*355*50 |
1280g |
510*370*370 |
10 |
14.7kg |
