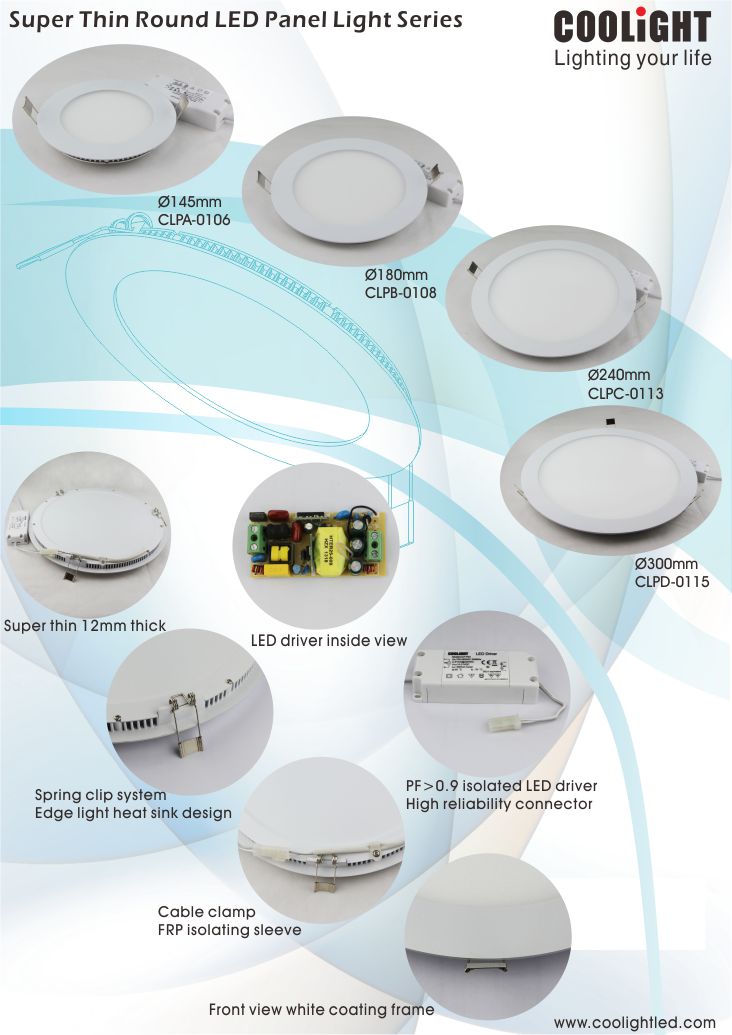

145mm CLPA round LED panel light

145mm CLPA round LED panel light

1. Edge light design, super slim,
2. Special design screen printing LGP(light guide plate) for high output,
3. Coolight self-design PF>0.9 high stablity isolated constant current LED driver,
4. Cable clamp and FRP isolating sleeve to avoid damage,
5. Good uniformity and soft light, heathy for your eyes.

Inquiry Now

145mm CLPA Round LED Panel Light





145mm CLPA round LED panel light-1





Product Name:  145mm CLPA series round LED panel light
Power consumption:7W for 145MM
Heat sink material: Die-casting aluminum



LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC
LED driver PF: PF>0.9



Standard CRI: CRI>80
Beam angle: 110 degree
Color temperature: 3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table





Product Name

Part No.

Input
Voltage

Power (W)

Power Factor

Luminous flux

 (lm)

CCT        (K)

CRI

Beam Angle

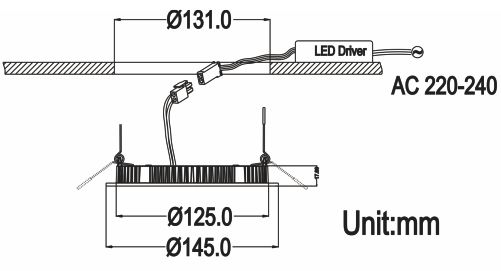

Cut Size

(mm)

145mm   Panel Light

CLPA-0106

100240VAC

7

>0.9

350

330

320

6000k
4000k
3000k

>80

110°

131

180mm   Panel Light

CLPB-0108

100240VAC

10

>0.9

570

550

490

166

240mm   Panel Light

CLPC-0113

100240VAC

16

>0.9

1050

1020

900

230

300 mm Panel Light

CLPD-0115

100240VAC

19

>0.9

1150

1120

1000



286






145mm CLPA round LED panel light-3

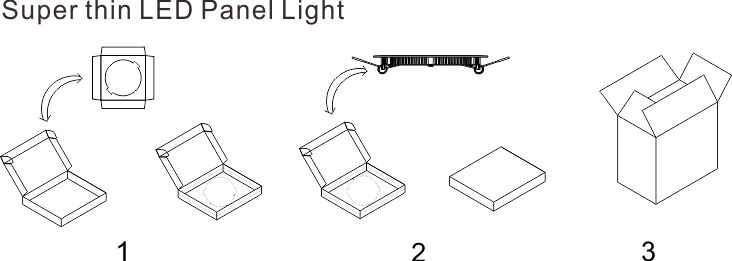

Part No.

Single box

(mm)

G.W. per pcs (±5%)

Outer carton

(mm)

QTY per Carton

(pcs)

G.W per carton

(±5%)

CLPA- 0106

185*180*50

480g

545*375*260

30

15.3kg

CLPB- 0108

210*205*50

677g

560*385*360

30

19.6kg

CLPC- 0113

285*280*50

880g

560*285*510

20

19.3kg

CLPD- 0115

360*355*50

1280g

510*370*370

10

14.7kg





145mm CLPA round LED panel light

CAUTION:
1) Indoor use only.
2) Working temperature: -20-40℃.
3) Please turn off power prior to installation, replacement and cleaning.
4) Do not try to disassemble the lam
p.
