3inch 7W CLDE square LED downlight

3inch 7W CLDE square LED downlight

1. Excellent performance square heat sink design,
2.
Coolight self-design PF>0.9 isolated constant current LED driver,

3. Optimized LED arrangement and fixture design to get perfect light distribution curve,
4. Cable clamp, strain relief bushing and FRP isolating sleeve to avoid damage,
5. Well-designed cut size, ideal replacement for traditional downlights directly.

Inquiry Now

3inch 7W CLDE Square Recessed LED Downlight



3inch 7W CLDE square recessed LED downlight-1







Product Name: 3inch 7W CLDE square recessed LED downlight
Power consumption:7W for 3inch
Heat sink material: Die-casting aluminum



LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC
LED driver PF: PF>0.9



Standard CRI: CRI>80 (3000K,4000K); CRI>70 (6000K)
Beam angle: 100 degree
Color temperature: 3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table









Product Name

Part No.

Input
Voltage

Power (W)

Power Factor

Luminous flux  (lm)

CCT        (K)

CRI

Beame Angle

Cut Size

(mm)




3” LED Downlight

CLDE-0105

100240VAC

7

>0.9

880

6000

>70

100°

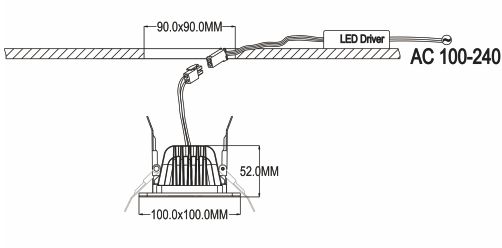

90*90



300

4000

>80



280

3000

>80



4” LED Downlight

CLDE-0109

100240VAC

12

>0.9

1050

6000

>70

125*125



690

4000

>80



680

3000

>80



6” LED Downlight

CLDE-0118

100240VAC

20

>0.9

1850

6000

>70

160*160



1300

4000

>80



1190

3000

>80



8” LED Downlight

CLDE-0124

100240VAC

30

>0.9

2400

6000

>70

190*190



1750

4000

>80



1700

3000

>80









3inch 7W CLDE square recessed LED downlight-2

Part No.

Single box

(mm)

G.W. per pcs (±5%)

Outer carton

(mm)

QTY per Carton

(pcs)

G.W per carton

(±5%)

CLDE- 0105

120*120*95

325g

610*245*485

40

14.5kg

CLDE- 0109

190*185*70

490g

560*385*360

30

16.2kg

CLDE- 0118

250*245*75

660g

505*500*385

20

14.7kg

CLDE- 0124

250*245*75

920g

505*500*385

20

19.9kg





3inch 7W CLDE square recessed LED downlight-5

CAUTION:
1) Indoor use only.
2) Working temperature: -20-40 degree.
3) Please turn off power prior to installation, replacement and cleaning.
4) Do not try to disassemble the lamp.
