4inch 12W CLDC recessed LED downlight

4inch 12W CLDC recessed LED downlight

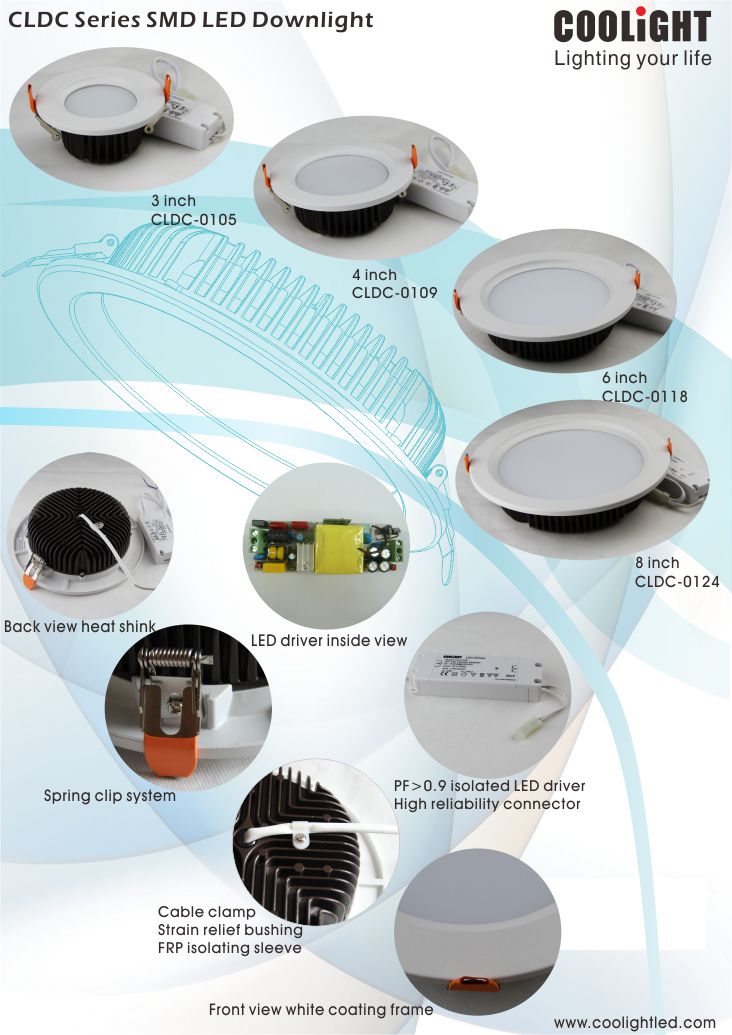

1. Coolight self-design high stablity isolated constant current LED driver,
2.
Optimized LED arrangement and fixture design to get perfect light distribution curve,
3.
Excellent performance heat sink design,

4. Cable clamp, strain relief bushing and FRP isolating sleeve to avoid damage,
5. Well-designed cut size, ideal replacement for traditional downlights directly.




Inquiry Now

4inch 12W CLDC recessed LED downlight

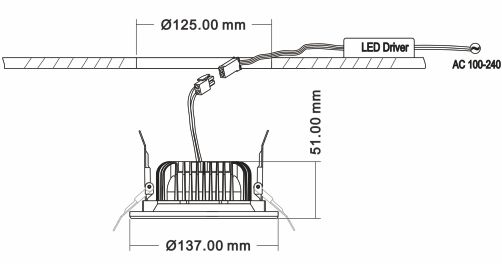

4inch 12W CLDC recessed LED downlight-1





Product Name: 4inch 12W CLDC recessed LED downlight
Power comsumption:12W for 4inch
Heat sink material: Die-casting aluminum



LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC
LED driver PF:  PF>0.9



Standard CRI: CRI>80 (3000K,4000K)
Beam angle: 100 degree
Color temperature: 3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table









Product Name

Part No.

Input
Voltage

Power (W)

Power Factor

Luminous flux  (lm)

CCT        (K)

CRI

Beame Angle

Cut Size (mm)

3” LED Downlight

CLDC- 0105

100- 240VAC



7

>0.9



410

6000

>70

100°

Ø90

390

4000

>80

370

3000

>80



4” LED Downlight

CLDC- 0109

12

850

6000

>70

Ø125

780

4000

>80

750

3000

>80

6” LED Downlight

CLDC- 0118

20

1880

6000

>70

Ø170

1470

4000

>80

1370

3000

>80

8” LED Downlight

CLDC- 0124

30

2050

6000

>70

Ø210

1960

4000

>80

1810

3000

>80

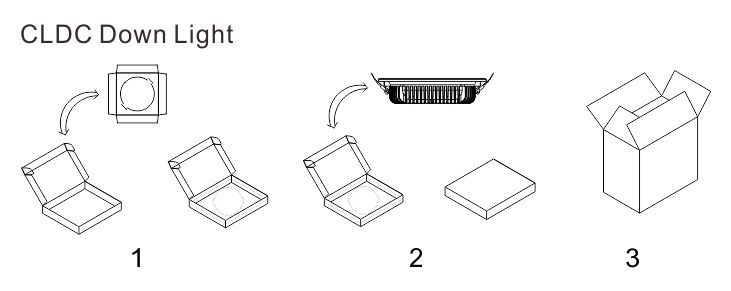

4inch 12W CLDC recessed LED downlight-2

Part No.

Single box

(mm)

G.W. per pcs (±5%)

Outer carton

(mm)

QTY per Carton

(pcs)

G.W per carton

(±5%)

CLDC- 0105

120*120*95

320g

610*245*485

40

14.1kg

CLDC- 0109

190*185*70

445g

560*385*360

30

15.0kg

CLDC- 0118

250*245*75

670g

505*500*385

20

14.9kg

CLDC- 0124

285*280*70

960g

575*565*360

20

20.5kg





4inch 12W CLDC recessed LED downlight-5

CAUTION:
1) Indoor use only.
2) Working temperature: -20-40 degree.
3) Please turn off power prior to installation, replacement and cleaning.
4) Do not try to disassemble the lamp.
