6inch 20W CLDE square LED downlight

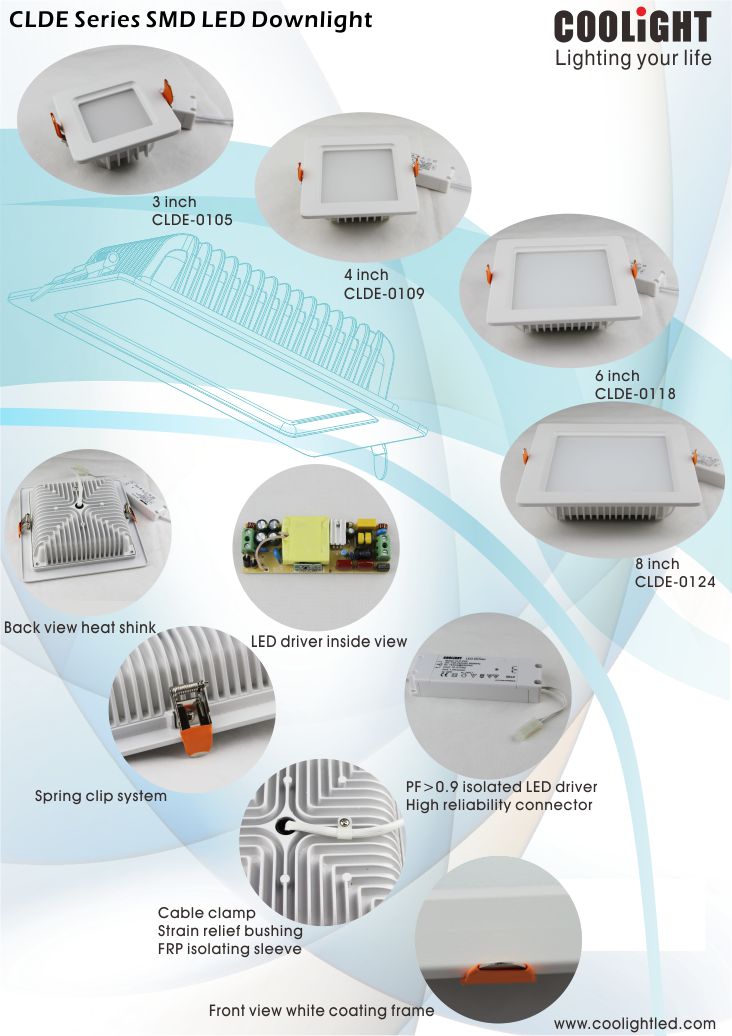

1. Coolight self-design high stablity isolated constant current LED driver,
2. Excellent performance heat sink design,
3. Cable clamp, strain relief bushing and FRP isolating sleeve to avoid damage,
4. Optimized LED arrangement and fixture design to get perfect light distribution curve,
5. Well-designed cut size, ideal replacement for traditional downlights directly.

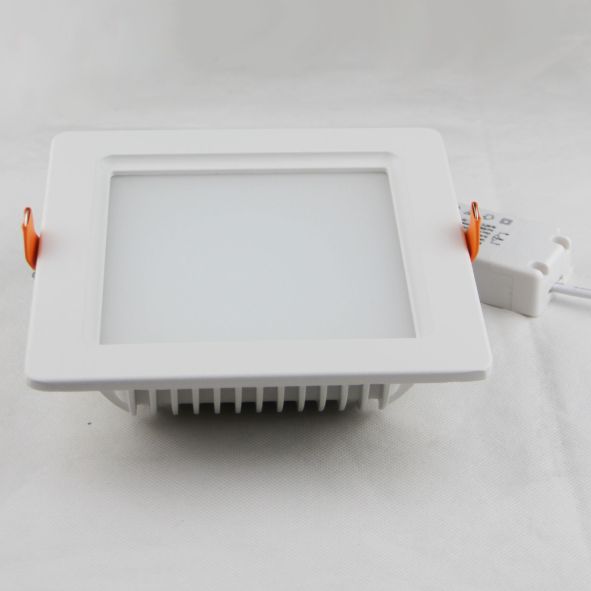

6inch 20W CLDE Square Recessed LED Downlight
Product Name: 6inch 20W CLDE square recessed LED downlight
Power consumption: 20W for 6inch
Heat sink material: Die-casting aluminum
LED driver type: Isolated constant current LED driver
LED driver input voltage: 100-240V AC
LED driver PF: PF>0.9
Standard CRI: CRI>80 (3000K,4000K)
Beam angle: 100 degree
Color temperature: 3000k, 4000k, 6000k optional
Luminous flux: detail lumen information as following table
|
Product Name |
Part No. |
Input |
Power (W) |
Power Factor |
Luminous flux (lm) |
CCT (K) |
CRI |
Beame Angle |
Cut Size (mm) |
|
|
3” LED Downlight |
CLDE-0105 |
100－240VAC |
7 |
>0.9 |
880 |
6000 |
>70 |
100° |
90*90 |
|
|
300 |
4000 |
>80 |
||||||||
|
280 |
3000 |
>80 |
||||||||
|
4” LED Downlight |
CLDE-0109 |
100－240VAC |
12 |
>0.9 |
1050 |
6000 |
>70 |
125*125 |
||
|
690 |
4000 |
>80 |
||||||||
|
680 |
3000 |
>80 |
||||||||
|
6” LED Downlight |
CLDE-0118 |
100－240VAC |
20 |
>0.9 |
1850 |
6000 |
>70 |

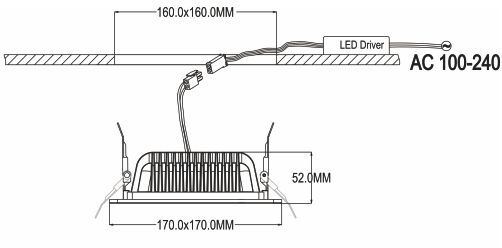

160*160 |
||
|
1300 |
4000 |
>80 |
||||||||
|
1190 |
3000 |
>80 |
||||||||
|
8” LED Downlight |
CLDE-0124 |
100－240VAC |
30 |
>0.9 |
2400 |
6000 |
>70 |
190*190 |
||
|
1750 |
4000 |
>80 |
||||||||
|
1700 |
3000 |
>80 |
|

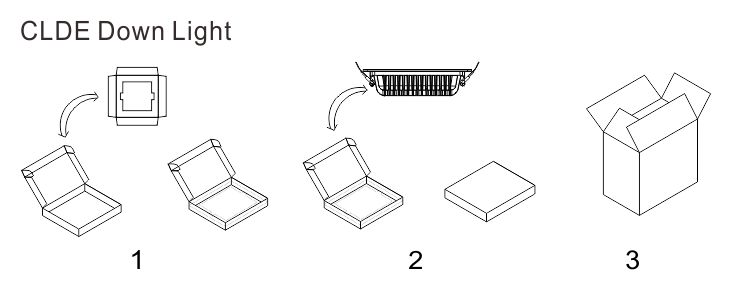

Part No. |
Single box (mm) |
G.W. per pcs (±5%) |
Outer carton (mm) |
QTY per Carton (pcs) |
G.W per carton (±5%) |
|
CLDE- 0105 |
120*120*95 |
325g |
610*245*485 |
40 |
14.5kg |
|
CLDE- 0109 |
190*185*70 |
490g |
560*385*360 |
30 |
16.2kg |
|
CLDE- 0118 |
250*245*75 |
660g |
505*500*385 |
20 |
14.7kg |
|
CLDE- 0124 |
250*245*75 |
920g |
505*500*385 |
20 |
19.9kg |
|
Part No. |
Single box (mm) |
G.W. per pcs (±5%) |
Outer carton (mm) |
QTY per Carton (pcs) |
G.W per carton (±5%) |
|
CLDE- 0105 |
120*120*95 |
325g |
610*245*485 |
40 |
14.5kg |
|
CLDE- 0109 |
190*185*70 |
490g |
560*385*360 |
30 |
16.2kg |
|
CLDE- 0118 |
250*245*75 |
660g |
505*500*385 |
20 |
14.7kg |
|
CLDE- 0124 |
250*245*75 |
920g |
505*500*385 |
20 |
19.9kg |
CAUTION:
1) Indoor use only.
2) Working temperature: -20-40 degree.
3) Please turn off power prior to installation, replacement and cleaning.
4) Do not try to disassemble the lamp.
